Tutorial: MapleRoyals on Steam Deck (Fully Working!)

Hey all, as promised in my previous post I wanted to make a guide on how to get MapleRoyals working on the steam deck.

Here's a video of it working:


And a screenshot (as proof ):


Here are all the steps that have to be done:

1. Install Bottles


2. Install the right Proton in Bottles
2.1 Open bottles preferences (Click hamburger menu and click preferences)


2.2 Go to 'Runners' and install GE-Proton7-33


2.3 Close preferences again

3. Create Bottle and install MapleRoyals
3.1 Open Bottles (if you haven't already)
3.2 Click on the + icon in the top left corner

3.3 As name type in 'Maple3' (all my scripts are named like this, feel free to choose something else but it'll require a bit more fiddling)
3.4 Chosote Custom and look for GE-Proton7-33

3.5 Click the blue create button
3.6 Download the MapleRoyals setup
3.7 Open the Maple3 Bottle and run the setup executable

3.8 After installation you should now see this:

3.9 Before starting it we need to do some configuration so that it works nicely in steam
3.10 On the left go to Preferences
3.11 Click on Display Settings
3.12 Configure a Virtual Desktop (In the previous versions of Bottles this loooked somewhat different), but in the end it should work the same:

3.13 You should now be able to launch MapleRoyals from outside of Steam

4. Launching MapleRoyals from Steam
4.1 By default launching MapleRoyals from Steam doesn't work so we need to do a bit more work here.
4.2 Open the `kwrite` text editor and create a file `/home/deck/Maple.sh` with the following content:

Code:

#!/bin/bash

WINEPREFIX=/home/deck/.var/app/com.usebottles.bottles/data/bottles/bottles/Maple3 /home/deck/.var/app/com.usebottles.bottles/data/bottles/runners/GE-Proton7-33/files/bin/wine /home/deck/.var/app/com.usebottles.bottles/data/bottles/bottles/Maple3/drive_c/MapleRoyals/MapleRoyals.exe

4.3 Make Maple.sh executable by right clicking it, going to Properties, then Permissions and then selecting "Is executable"

4.4 Open steam in desktop mode
4.5 In library, on the bottom left, add a non steam game

4.6 Just click something random and click "ADD SELECTED PROGRAMS" (E.g. Discord in my case)
4.7 Look for Discord and open properties
4.8 Change the properties to match this:

TARGET:

Code:

""/home/deck/Maple.sh""

START IN:

Code:

""/home/deck/.var/app/com.usebottles.bottles/data/bottles/bottles/Maple3/drive_c/MapleRoyals/"

(Watch the quotes)

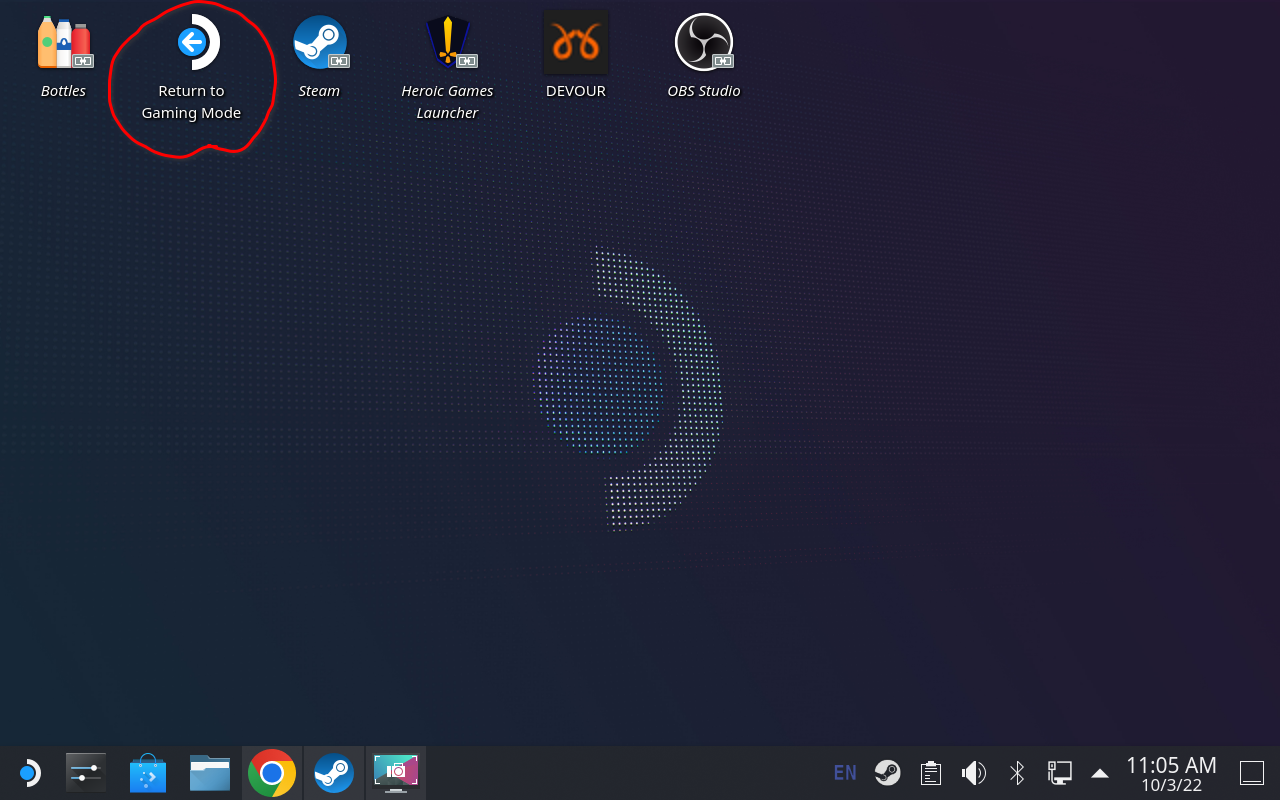

4.9 Go back to the Desktop and click "Return to Gaming Mode"


5. Playing MapleRoyals on Steam Deck
By going to "Non-Steam games" and clicking run on Maple.sh, MapleRoyals will now start.

Logging in in MapleRoyals is quite hard on the Steam Deck due to the Keyboard not working too nicely for me. I simply bought a tiny tiny bluetooth keyboard:
https://minitoetsenbord.nl/product/...toetsenbord-incl-bluetooth-dongle-rt-mwk08bt/

There's different ones available but this one is nice to just throw in your bag and bring with you.

6. Configuring controller
This is of course all up to you but you can configure your controller from the Steam client (in game mode).
My loadout:
R1/L1: Clicking
R2/L2: Jump/Teleport
Arrows/Left Analog: Walking
Left Pad: Buffs
Right Analog: Radial menu with emotes (F1-F12)
Right Pad: Mouse
Buttons Front: Most used skills + pots
Buttons Rear: More buffs / random stuff
Start/Select button: Escape and Inventory

7. Updating MapleRoyals
When a new update is required usually the game will start for a second and then exit without any information on why. This usually means there's a new MapleRoyals update.

To install this do the following (same steps as before):
7.1 Open Dekstop mode and download the new Setup
7.2 Open Bottles
7.3 Open the Maple3 Bottle
7.4 Click Run Executable
7.5 Install MapleRoyals again



<reserved>



Devour good game spooky spider wamen



omg MapleRoyals is portable now , i need one this ! :3 nice work!



Please let me know if it all worked the way I described it . I hope I haven't missed anything.



Can you add your display settings? Everything works great except maplestory isn't nice and centered like your picture on steam deck. I think you used the same picture twice on the display step. Great tutorial though!



Worked well for me when I got it working in Gaming mode. Don't make the "Maple.sh" file in Windows and send it over, the script complains about Windows newlines. Make it yourself or change the newlines after sending it to the Steam Deck.

Thanks for the tutorial! I might try the latest GE-Proton-7-37 to see if it works with that, but 33 works perfectly afaik.

I also put up a steam community layout for "Maple.sh". You have to enable turbo for the buttons if you want "Ctrl" presses to act like "press-and-hold". Gonna play it more like this tonight.

Have you tried Steam Button + Left D-Pad to hit ESC and then heading to the "System Options" and then enabling "Full Screen"? I have to do it every time I start the game up, but it takes up the whole screen for me.



BTW Just tested and GE-Proton-7-37 works flawlessly.

Edit: Getting some crashes here and there...gonna try to pinpoint why.



I indeed see that I added an incorrect screenshot. I'll probably fix that at some point.

Can you make a screenshot / picture of the issue you're running into with the screen not being centered?



The screen is windowed until you go into the in-game settings and select full screen, then it is identical to your picture.



You can always try to bind Alt+Enter to a key to ease that process (if it doesn't save for you)



its easy to do? one big reason for buy a steam deck lol this is awesome!



If you can follow the steps it should work . Just remember that it's easier if you have one of those tiny Bluetooth keyboards.



Just followed all of this setup. Maple launches correctly from Bottles, the Maple.sh executable, and from Steam within desktop mode. Launching from gaming mode gives me a spinning steam logo....i can hear the game running in the background, but cant switch to it. Any ideas?



Have you made sure to do this from the guide in Bottles?

3.10 On the left go to Preferences (when you have the Maple3 Bottle selected)
3.11 Click on Display Settings
3.12 Configure a Virtual Desktop (just enable it, no other settings need to be messed with)



Yep, 100% followed and rechecked. It worked for a little bit yesterday after forcing compatibility, but it's back to the same behavior again.



Hmm that is strange. Did you create the Maple.sh file in Linux? Also, did you use the same Proton build as described in the OP? The script needs to point to the right dir based on the Proton build. Also, make sure the "START IN" line ends with a single double-quote.



Yep! Copy-pasted from the forum exactly, while on the Deck. Currently, what "sorta" works is forcing compatibility modes from within Steam itself....but even that only sometimes works. Once i'm past the "spinning logo of doom" the game plays perfectly.



Does it matter which setup or install you use. WZ vs IMG. Sorry i'm computer illiterate thanks



I used the WZ installer with success. Haven't tried IMG.
